DISS OUTLETS

ชื่อสินค้า   : DISS Outlets

รหัสสินค้า  : OUT002

รายละเอียดสินค้า

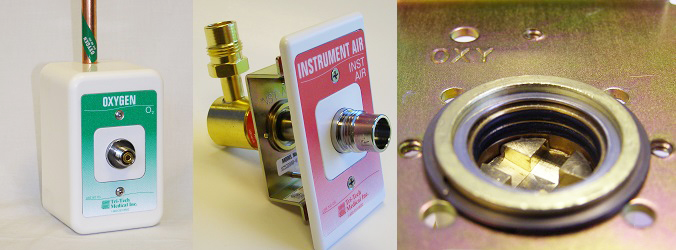

Our DISS medical gas outlets incorporate several design features which make them superior to our competitor’s outlet designs:

  • Frontall™ front-loaded feature – easy to service, saving time and money
  • Double O-ring seal between the front and back bodies support 10 lbs at 2 inches without leaking
  • Double O-ring seal may be replaced without having to shut down the gas service
  • Durable, protective, scratch resistant vinyl label
  • Brass secondary check poppet (not plastic)

Features

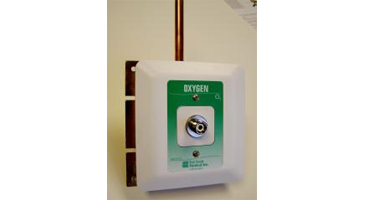

The Frontall™ DISS medical gas console/headwall outlets/terminal units represent the most technically advanced means of providing medical gas connections to the central piping system. The outlets incorporate a unique front-loaded valve cartridge feature which makes the Tri-Tech Medical outlets easy to repair, saving valuable time and money for the health care facility.

  • ETL Listed to UL 1331 and CSA Z9170-1.
  • Conforms to NFPA 99 and CGA standards
  • Accepts DISS gas specific nut & nipple sets
  • Ease of maintenance without removing the faceplate using a cartridge insertion tool.
  • Pin indexed faceplate and back
  • Removable front assembly
  • All outlets are 100% tested for flow and leaks
  • 360° swivel inlet tube
  • Metal back and nameplate
  • Provides support for dispensing equipment without the use of additional brackets
  • Made in the U.S.A.
  • Five year warranty
