ไฮเปอร์บาริค แมนิโฟลด์
ชื่อสินค้า : ไฮเปอร์บาริค แมนิโฟลด์
รหัสสินค้า : HY001
รายละเอียดสินค้า

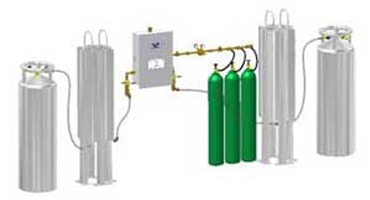

The LU35 Hyperbaric manifold provides up to 3,500 scfh (1,650 lpm) of oxygen from portable bulk vessels with state-of-the-art digital transducer technology. It has been specifically designed for applications such as: Hyperbaric Chambers, emergency preparedness back-up systems for bulk systems, where space is not sufficient for a bulk tank and back-feeding during shut-downs.
- Input power 120 VAC, 50 to 60 Hz single point connection
- 72” flexible pigtails between vaporizers and header
- 96” stainless double wall flexible pigtails between cryogenic vessels and vaporizers.
- Economizer circuits for maximum efficiency of gas use.
- Unit of measure switching (psi, kPa, BAR).
- Dual line pressure regulators
- Expandable – additional portable bulk vessels may be added.
- Cabinet + headers weight 105 lbs.
- May be converted from low or medium pressure liquid portable bulk vessel use to use with high pressure cylinders.
- Line pressure sensor may be mounted inside the cabinet or remotely located to eliminate the need for a high/low pressure switch for master alarm operation.
- Flow capacity 3,500 scfh – (41.67 scfm) with a single portable bulk vessel.
- Packages available with 3,500 scfh non-continuous (12 hours on / 12 hours off) and continuous rated vaporizers.
